Floor Grilles & Components

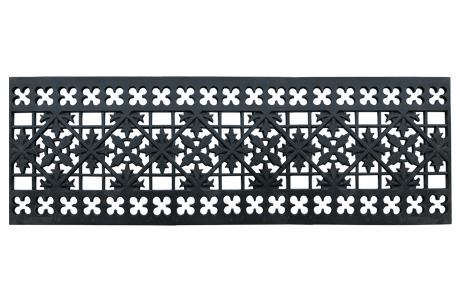

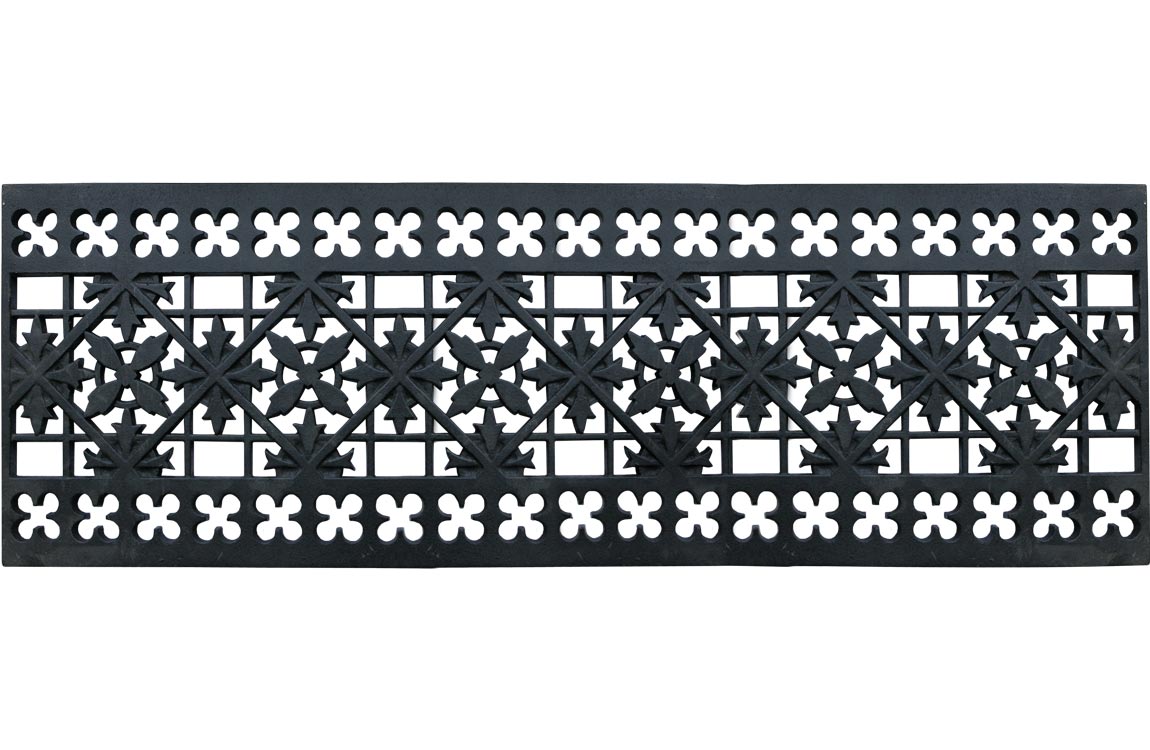

This 945mm wide heavy cast iron floor grille is designed to be used in conjunction with our grille support system, it has been painted with a black low sheen finishing paint. All dimensions quoted are +/- 2mm. Floor grille weighs 15kg.

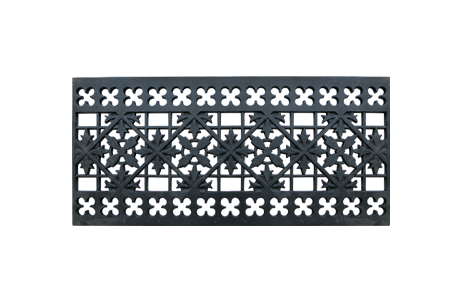

This 649mm wide heavy cast iron floor grille is designed to be used in conjunction with our grille support system, it has been painted with a black low sheen finishing paint. All dimensions quoted are +/- 2mm. Floor grille weighs 10.5kg.

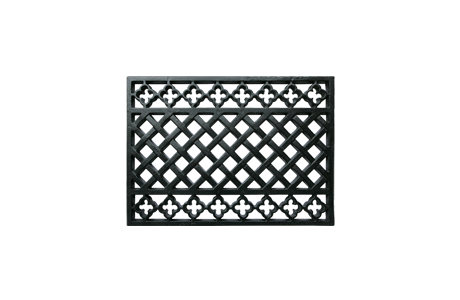

This 373mm wide heavy cast iron floor grille is designed to be used in conjunction with our grille support system, it has been painted with a black low sheen finishing paint. All dimensions quoted are +/- 2mm. Floor grille weighs 5kg.

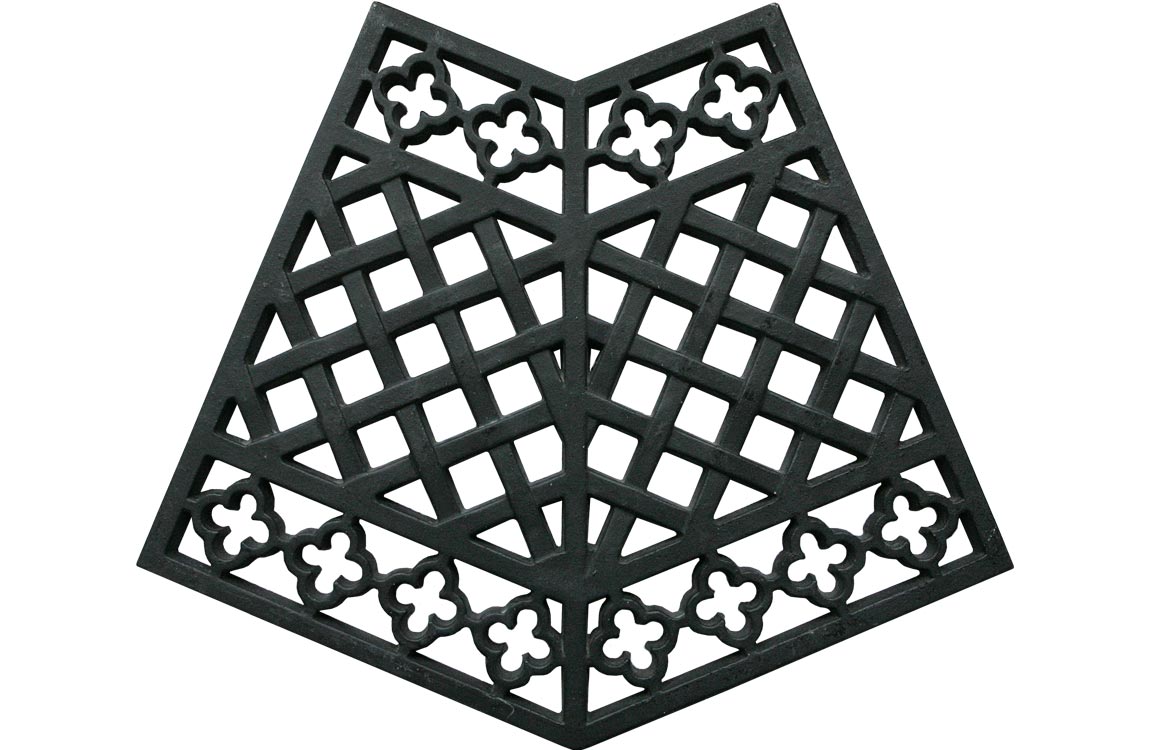

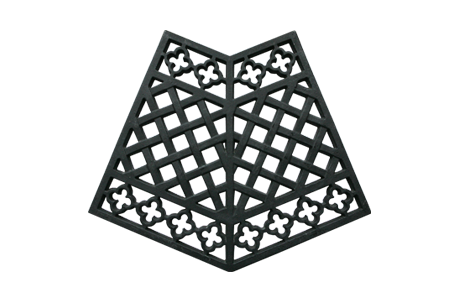

This angled heavy cast iron floor grille is designed to be used in conjunction with our grille support system, it has been painted with a black low sheen finishing paint. All dimensions quoted are +/- 2mm. Floor grille weighs 4.5kg.

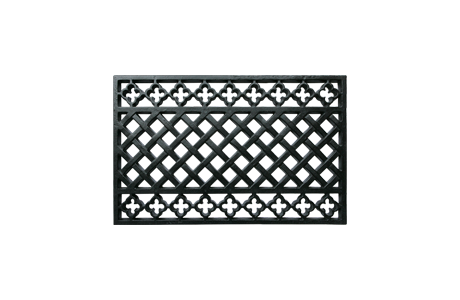

This 417mm wide heavy cast iron floor grille is designed to be used in conjunction with our grille support system, it has been painted with a black low sheen finishing paint. All dimensions quoted are +/- 2mm. Floor grille weighs 6kg.

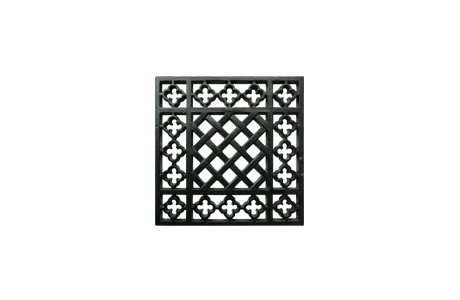

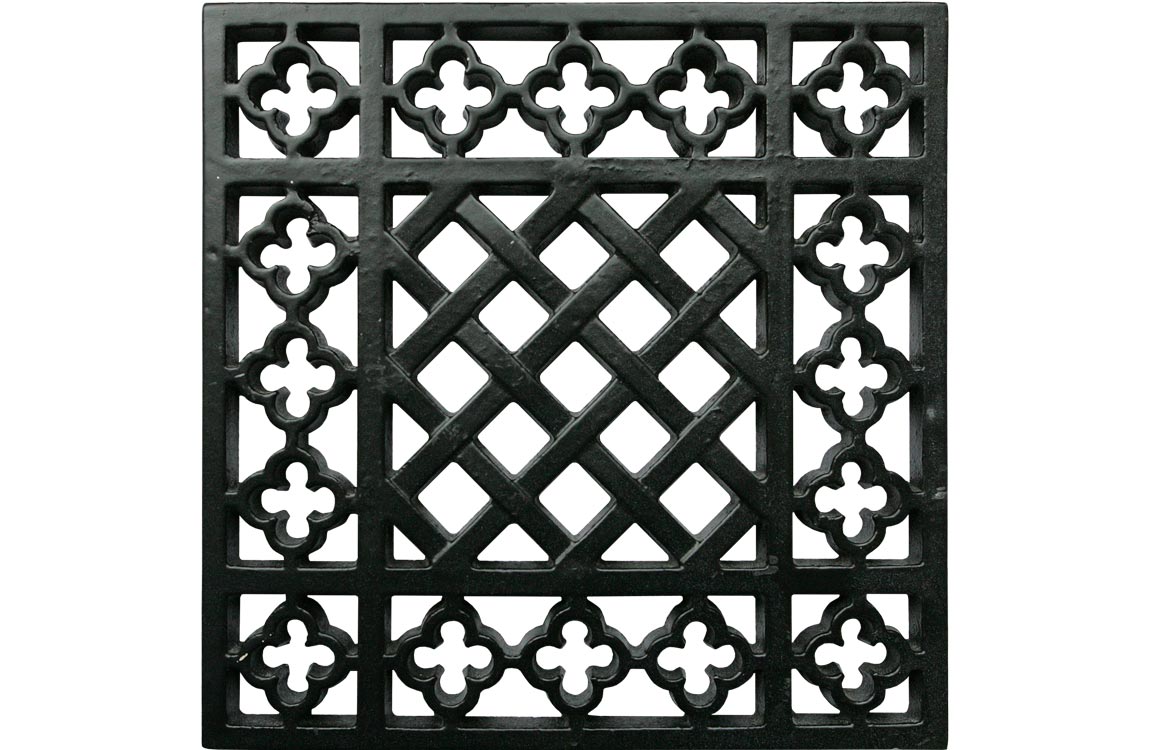

This square heavy cast iron floor grille is designed to be used in conjunction with our grille support system, it has been painted with a black low sheen finishing paint. All dimensions quoted are +/- 2mm. Floor grille weighs 4.1kg.

This is an excellent way of spurring from the house heating system and therefore utilising existing resources. The heating elements are supplied in 1m lengths but can be cut down to shorter lengths if required. 1 metre pipe = 0.69KW based on a mean water temperature of 71 degrees Celcius.

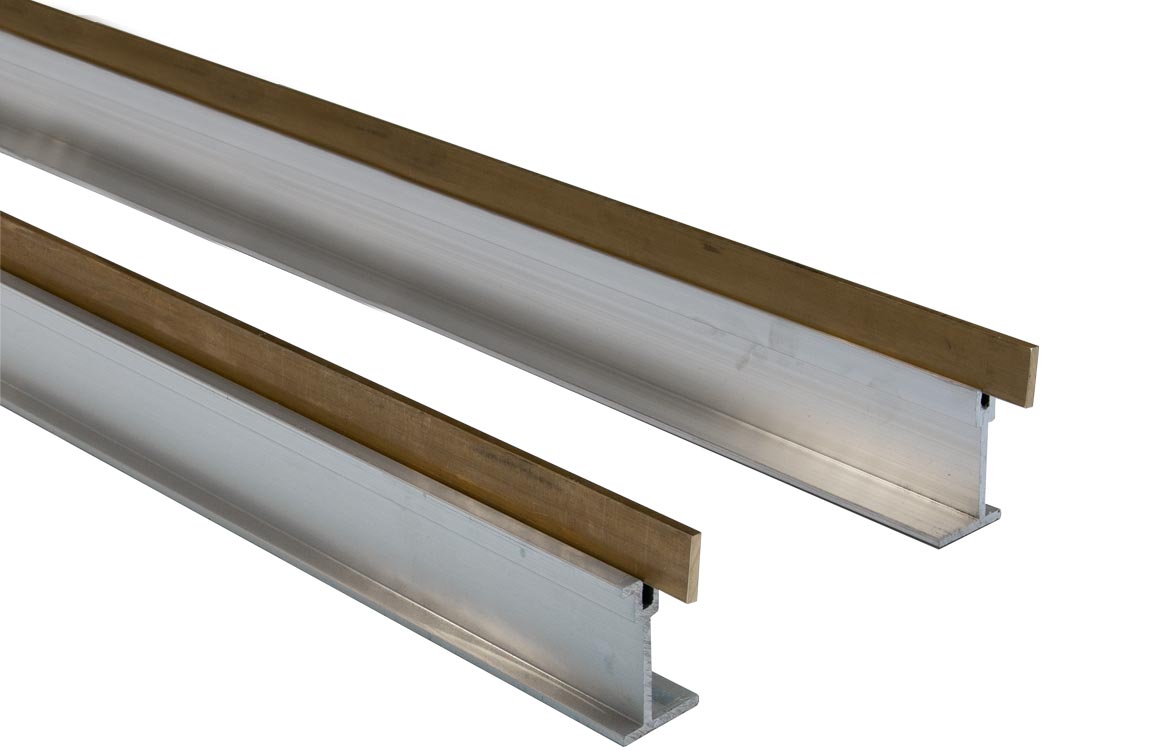

A double sided run of supporting frame with a brass insert for supporting our traditional underfloor heating grilles.

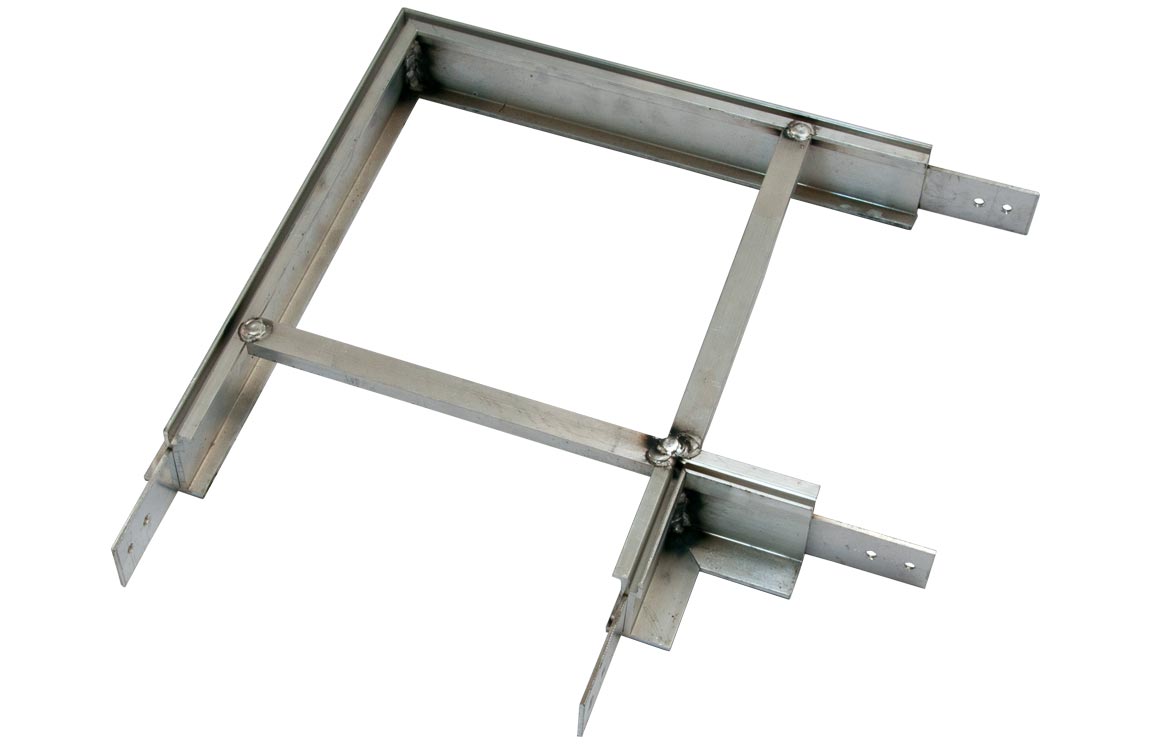

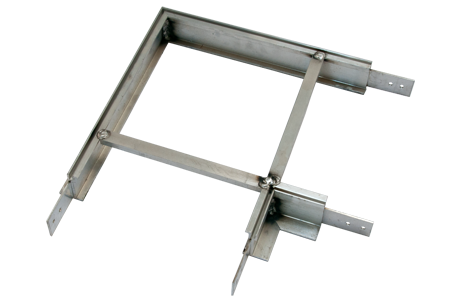

An angle support frame for corners pre-manufactured for easy installation on site. When ordered with support frame, brass insets will be sized to include corner pieces. Available in 2 different sizes to suit either the Harston or Bitteswell systems.

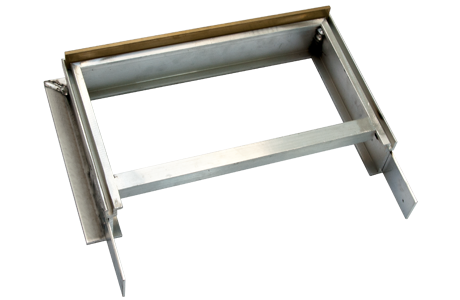

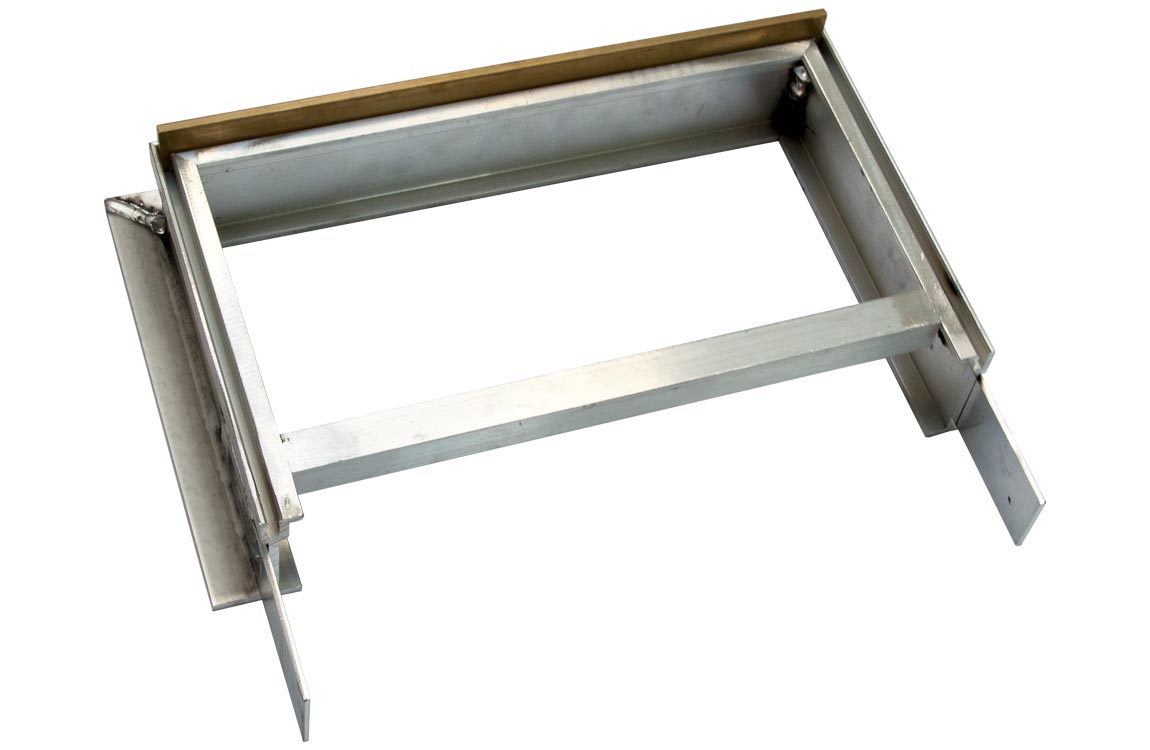

An angle support frame end of run pre-manufactured for easy installation on site. Support comes with brass end only, however when ordered with support frame, brass insets will be sized to include end jointing pieces. Available in 2 different sizes to suit either the Harston or Bitteswell systems.

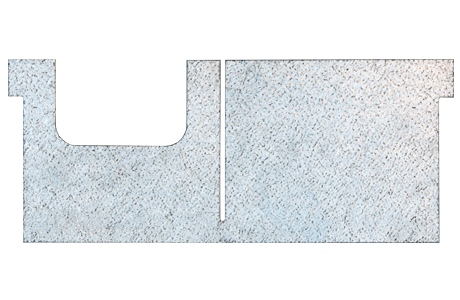

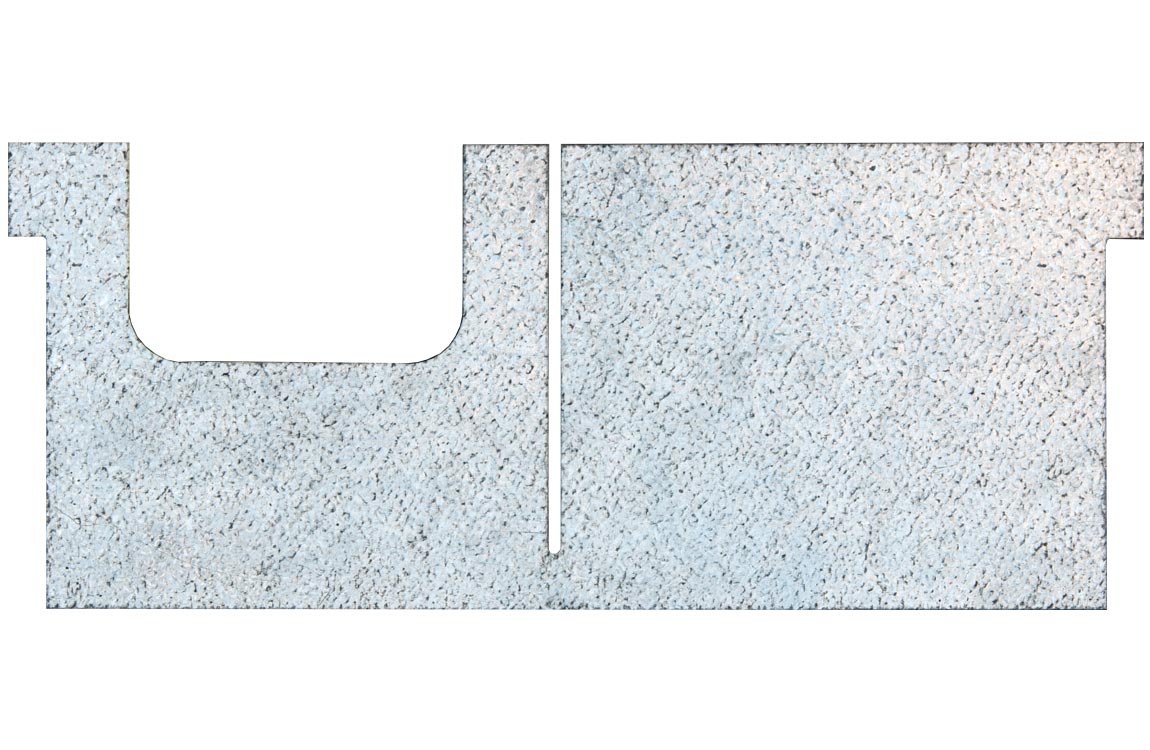

Supporting bracket for the heating elements and the deflector plates. Available in 2 different sizes to suit either the Harston or Bitteswell systems.

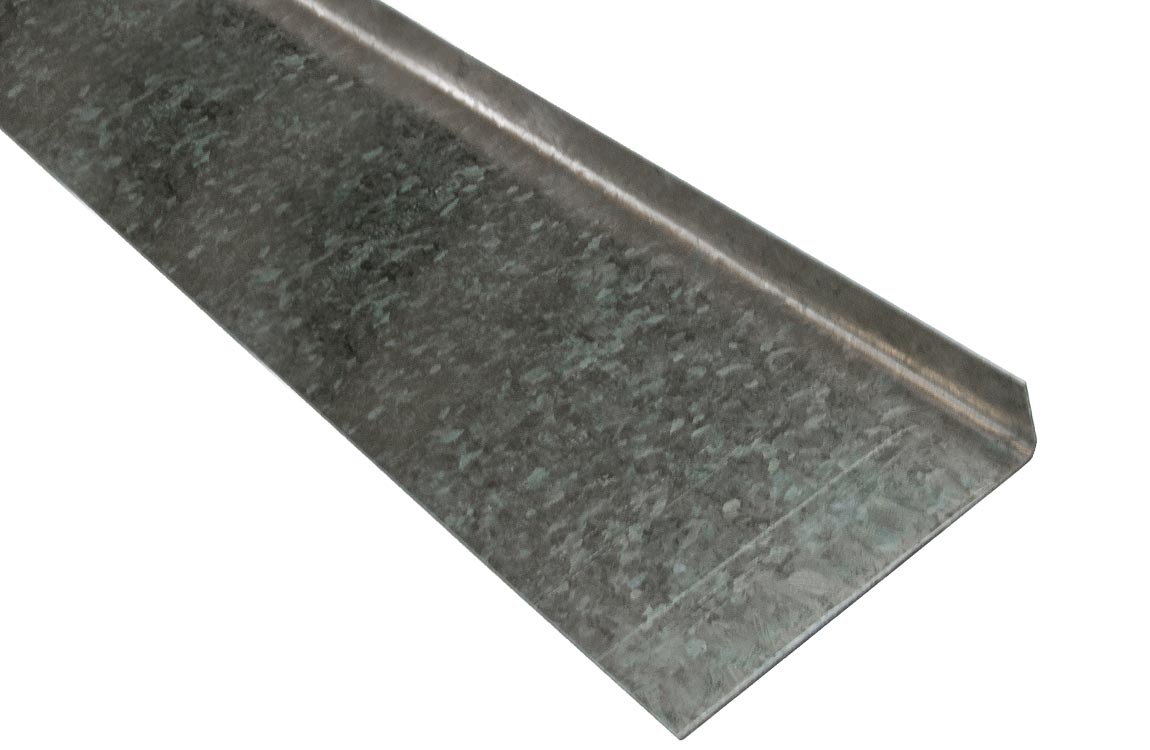

An aluminium deflector plate to be positioned within the heating trench, forcing heat upwards and into the room.
